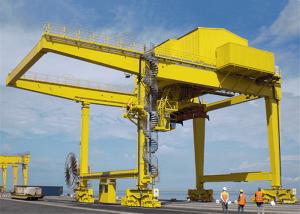

Sea Port RMG Rail Mounted Container Gantry Crane Double Girders Beams 60t 100t

Product Categories

Xinxiang Magicart Cranes Co., LTD

Contact Now

Sea Port RMG Rail Mounted Container Gantry Crane Double Girders Beams 60t 100t

Name: Sea Port RMG Rail Mounted Container Gantry Crane Double Girders Beams 60t 100t
Brand: Magicart
Price: 1 USD

Quality Sea Port RMG Rail Mounted Container Gantry Crane Double Girders Beams 60t 100t wholesale

Brand Name : Magicart

Model Number : RMG

Certification : CE ISO GOST TUV BV

Place of Origin : Henan, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30000 sets per year

Delivery Time : According to customer needs

Packaging Details : High quality plywood crate and plastic woven cloth

Capacity : 10-100t, customized

Span : 18-35m, customized

Lifting Height : 10-20m, customized

Warranty : 2 Years

Girder structure : Box Type

After-sales service provided : Engineers available to service machinery overseas

Core Components : PLC, Bearing, Gearbox, Motor, Gear

Advantages : Advanced machining and processing equipments

Application : Railway Station, Port, Logistics park, etc.

Contact Now

60t 100t Double Girders Or Beams Sea Port RMG Rail Mounted Container Gantry Crane

Product Description

Rail Mounted Double Girder Container Gantry Crane (RMG) is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.

Drawing and Specification

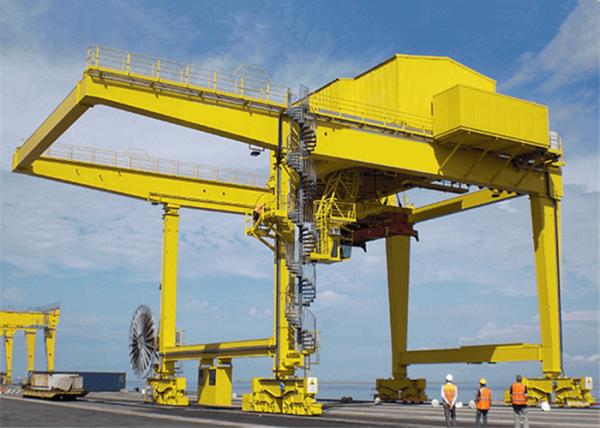

Sea Port RMG Rail Mounted Container Gantry Crane Double Girders Beams 60t 100t

Load Capacity (ton)	Span /Rail Gauge (m)	Max. Lifting height (m)	Duty Class
10	15~35	3~25	A5 or A3
16	15~35	3~25	A5 or A3
20	15~35	3~25	A5 or A3
32	15~35	3~25	A5 or A3
36	15~35	3~25	A5 or A3
40	15~35	3~25	A5 or A3
50	15~35	3~25	A5 or A3
Customizable	Customizable	Customizable	Customizable

Product Advantages

1. Modular Design

According to the general rules of products, components, it forms the hoisting mechanism modeule, trolley traction mechanism module, trolley assembly module, steel structure module, founction module, general module and etc.

The standard module production ensures product stability of quality and shortens the delivery cycle.

2. Advanced Manufacturing Technology

Steel shot blasting pretreatment, the surface quality reaches Sa 2.5 grade.

Crane wheel and wheel shaft through the high frequency quenching and tempering treatment, it eliminates the internal stress and ensures the machining accuracy. the use of welding robot, the main girder inseam weld by advanced MAG welding. The main girder welding adopts radiographic testing and ultrasonic testing to ensure the welding quality.

3. High reliability

The motor and ruducer are imported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.

The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.

4. Safety Parameters
Automatic rectify deviation control, weight overload protection device, top quality polyurethane buffer, phase protection, lifting limit switch, cross travelling limit switch

Sea Port RMG Rail Mounted Container Gantry Crane Double Girders Beams 60t 100t

Related Products

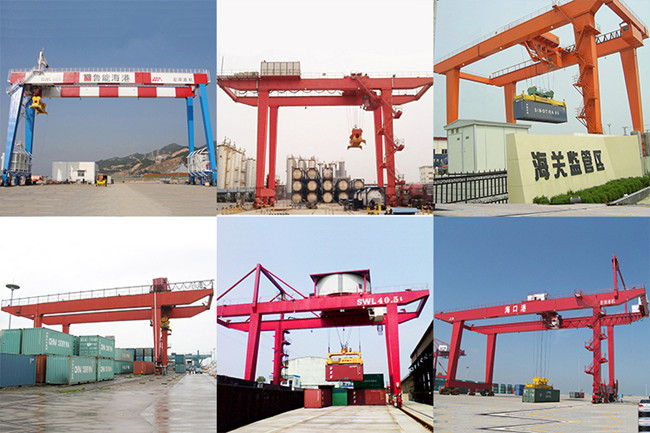

Installation and Commissioning

Sea Port RMG Rail Mounted Container Gantry Crane Double Girders Beams 60t 100t

FAQ

1. What's the information should I provide when inquiry? More details or drawings, better.

A: Lift capacity B: Span C: Lift height D: Container Size E: power source or other specials you give us will be more appreciated.

2. How many operating methods for my selection? Standard operating methods:

A: remote control with push buttons B: cabin(space capsule seat) control with joystick. Choose any type as you like.

3. Can this type work in hazardous environment?

A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.

4. Can you provide the serious lifting tools?

A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

5. How can we install the crane?

A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.

6. Safety device

A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
